This page explains how you can set up port forwarding on an Ultra Hub modem.
Before you begin
Port forwarding is a way to make a computer or server on your private network accessible to computers on the Internet, regardless if you are behind a router or Firewall. It is commonly used for hosting:
- Game servers
- Peer-to-peer downloading
- Static VPN routes
- Voice over IP type applications.
The our technical support team are unable to assist you with port forwarding queries. We are providing this information as a guide only, and staff are unable to provide further troubleshooting information.
Static IP
| Customer type | Details |
| Personal |
|
| Business |
|
After you have been assigned a Static IP, make a note of it and restart your router. The modem will automatically be assigned the Static IP address you have been provided.
Steps
- Open a web browser and go to 192.168.1.1

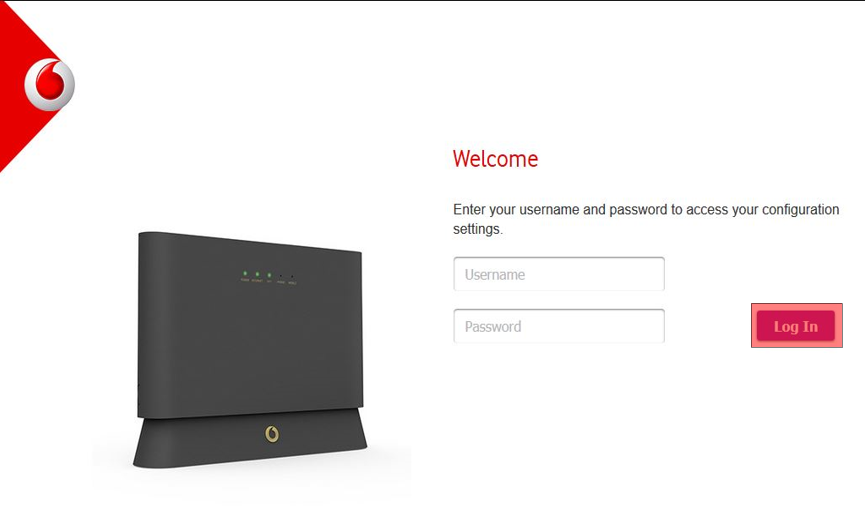

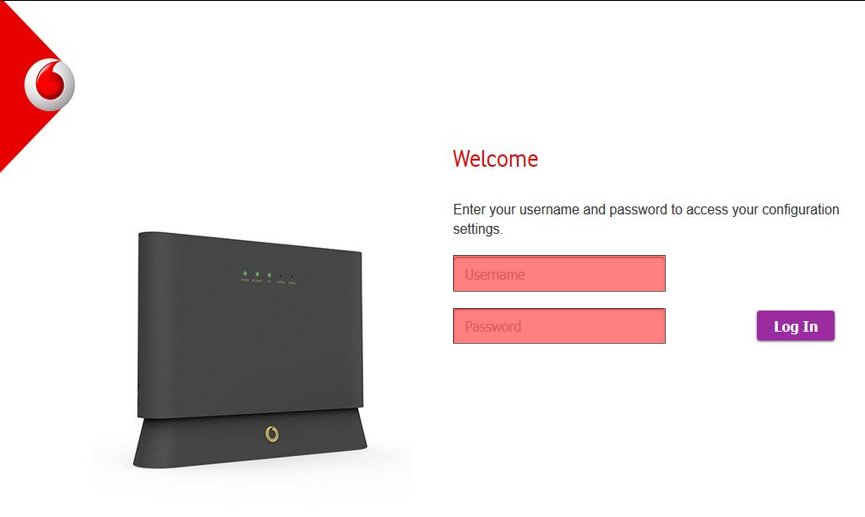

The Welcome screen appears - Complete the following fields:
- Username: vodafone
- Password: You can find this on the bottom of the modem
- Click Log In The Overview screen appears
- Click the Internet tab

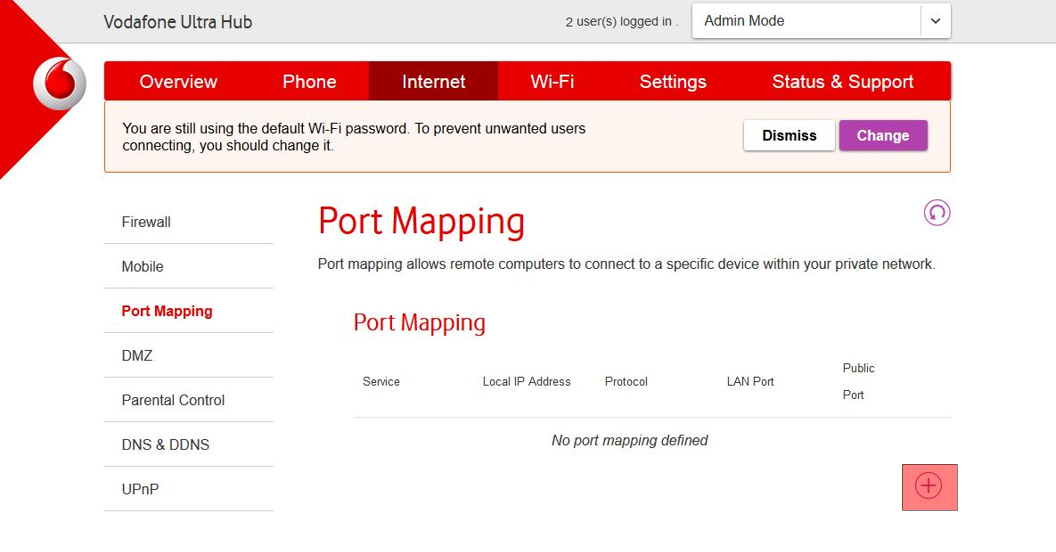

- From the left-hand menu, click Port Mapping The Port Mapping screen appears
- In the Port Mapping section, click the + symbol The Add Port Mapping pop up appears

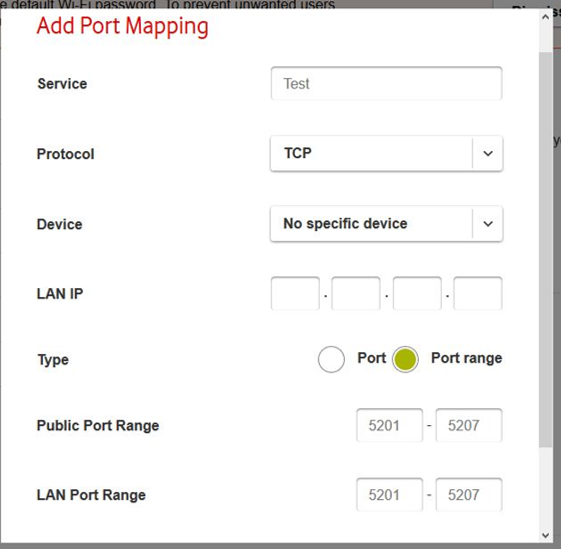

- Complete the following fields:
- Service
- Protocol
- Device
- LAN IP
- Type
- Public Port Range
- LAN Port Range

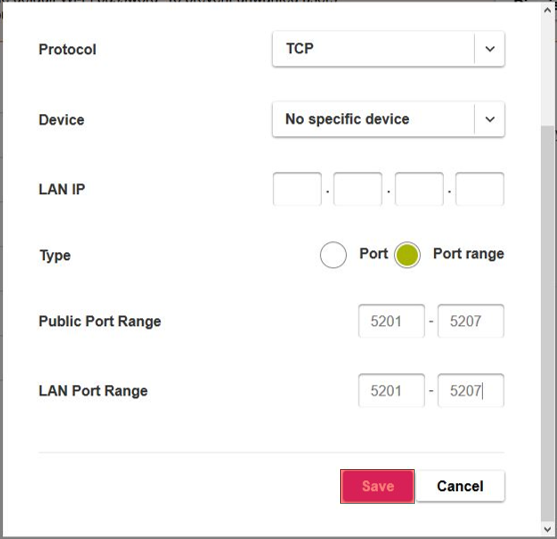

- Click Save The pop up closes
The port forward you set up is now listed on the Port Mapping screen - Click Apply After a port forward is added, you may need to also allow the connection in your firewall if the application using the port forward is running on your computer.
- In some instances your computer may prompt to allow the port forward, otherwise go into the firewall settings to allow the application.
- Other devices such as IP Cameras, Game Consoles and NAS machines often accept these automatically and the modem change is sufficient.
